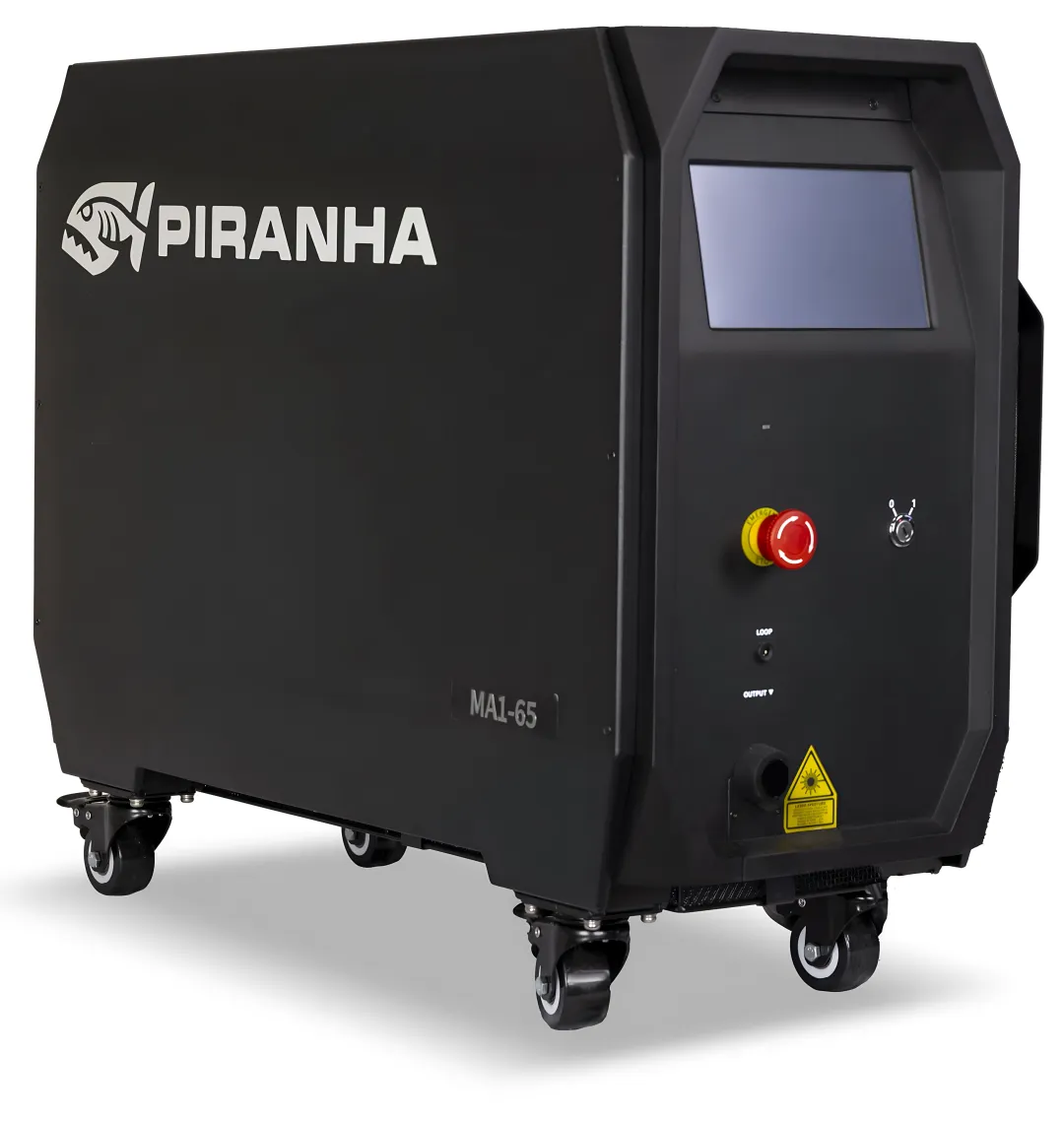

5 in 1 Handheld Laser Welding Machine

Laser welding with the MA1 Series is up to four times faster than traditional arc welding methods for mild steel. The concentrated laser beam creates a narrower heat-affected zone, which speeds up welding while also reducing warping, burn-through, and the need for post-weld grinding or polishing.

Because the MA1 Series is a Class IV laser product, operators must wear laser-safe eyewear at all times, which is included with every unit purchased. Compliance with European safety standards and SGS industry testing further ensures stable, safe beam output while reducing exposure to UV/IR radiation and welding fumes common with arc welding.

Most operators can achieve professional-quality welds after just 1-2 hours of training, thanks to the machine's 7-inch touchscreen interface and 32 preset process parameters. The intuitive, multi-language operating system and built-in wobble function make it accessible even for welders new to laser technology.

The laser power source in the MA1 Series is rated for approximately 100,000 hours of operation. Each unit undergoes rigorous factory testing, including a 500-hour temperature cycling test and a 12-hour continuous welding test, before shipment to ensure long-term reliability on the shop floor.

The MA1 Series requires an industrial shielding gas, typically argon or nitrogen, to protect the weld pool from oxidation during welding. Proper gas selection depends on the material being welded and helps achieve clean, porosity-free welds with minimal post-processing.

The integrated wire feeder on the MA1 Series supports welding wire diameters of 1.0mm, 1.2mm, and 1.6mm. This flexibility allows operators to fill gaps and achieve smooth, flush weld profiles across a range of material thicknesses and joint configurations.
