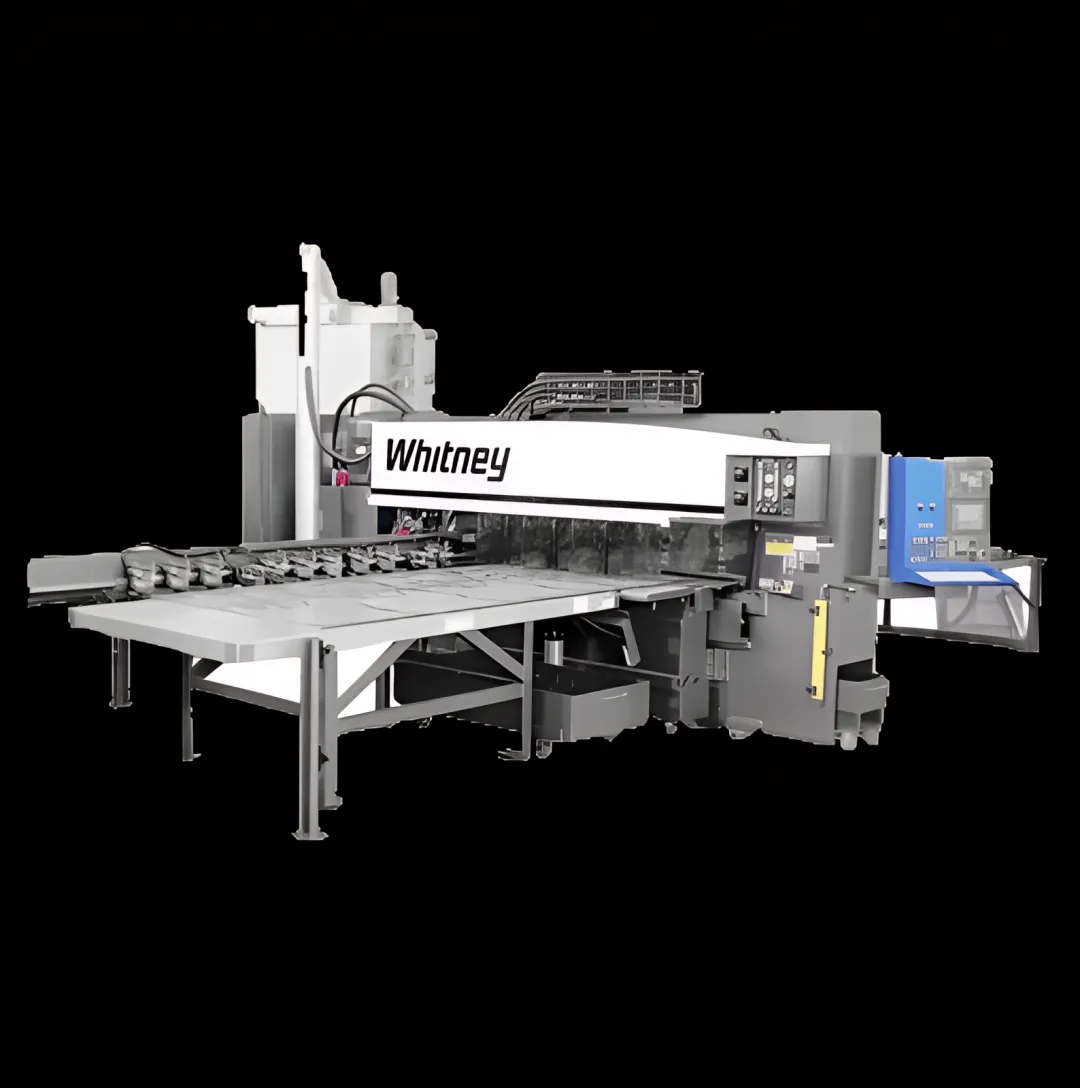

Punch Laser Combination Machines

Most industrial punch laser combinations process mild steel from 20 gauge up to 1/4 inch, stainless steel to 3/16 inch, and aluminum to 3/8 inch. Punching capacity typically ranges from 20-50 tons for standard tooling, while integrated fiber lasers handle detailed cutting and edge work. Material capacity depends on specific machine configuration and your production requirements.

Choose a combination system if your work includes repetitive hole patterns, forming operations (dimples, louvers, taps), and complex cut shapes in the same parts. Standalone fiber lasers excel at intricate geometry and thicker materials but lack forming capabilities. Consider your part mix: if 60%+ of jobs need both punching and cutting, a combo machine maximizes efficiency and floor space utilization.

Operators need foundational CNC programming knowledge and understanding of both punching tool selection and laser cutting parameters. Most fabricators train experienced punch press or laser operators in 2-4 weeks, covering CAD/CAM software, tool library management, nesting optimization, and maintenance protocols. Piranha provides consultative support and connects buyers with training resources during installation and setup.

Yes, many combination systems are designed for automation integration from the outset. Tower systems automate sheet loading, while part sorting conveyors and skeleton removal systems handle finished components. Automation scalability allows shops to start with manual operation and add handling equipment as production volumes increase, without replacing the core machine.

Regular maintenance includes daily lens cleaning and punch tool inspection, weekly lubrication of linear guides and ball screws, monthly laser resonator checks, and quarterly calibration of punch positioning and laser focus. Preventive maintenance programs minimize downtime—Piranha offers same-day parts shipping from Belvidere, IL, and nationwide service coverage to keep combination systems running at peak performance.

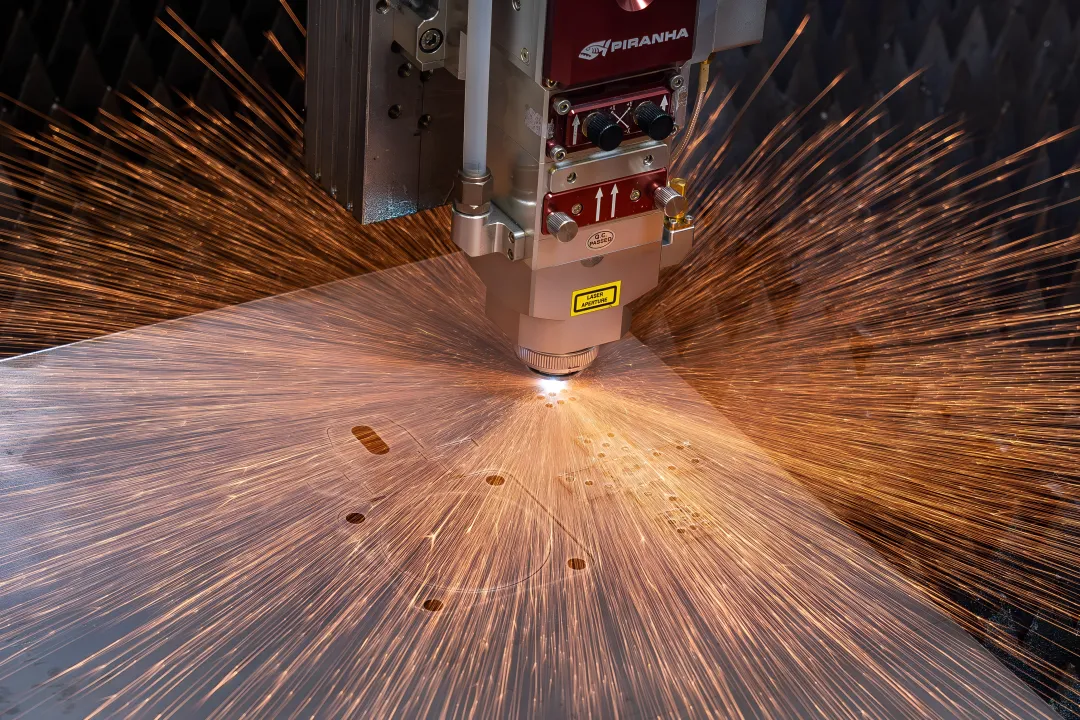

Fiber laser cutting delivers clean, dross-free edges ideal for welding and finishing, with kerf widths under 0.010 inches for intricate detail work. CNC punching provides repeatable hole positioning within ±0.005 inches and enables forming operations lasers cannot perform. Together, they offer complementary strengths: punching for speed and forming, laser cutting for precision contours and material flexibility.
