Standard & Custom Industrial Punches

For hardened steel punching in industrial fabrication, hydraulic ironworkers with 110+ ton capacity deliver the force needed to punch through tough materials. Piranha's P-110 and P-140 models, along with dual-operator PII and BII series machines up to 225 tons, provide the tonnage and precision required. Proper tooling selection—including hardened punch and die sets rated for your material thickness—is critical. Contact Piranha's tooling specialists at 800-338-5471 for attachment consultation based on your specific hardened steel applications.

A mechanical punch uses flywheel energy and mechanical linkages to deliver punching force, whereas Piranha's hydraulic punches use hydraulic cylinders for controlled, consistent tonnage throughout the full stroke. Hydraulic systems like the SEP-120 and P-series ironworkers offer advantages including adjustable stroke control, full tonnage at any point in the stroke, safer operation with two-hand controls, and reduced noise compared to mechanical punches. Hydraulic punches are preferred in modern fabrication for their precision, repeatability, and ability to handle thick materials up to 1" plate.

Tonnage requirements depend on material thickness, hole diameter, and material type. For mild steel, a 50-65 ton punch handles up to 3/8" plate; 90-110 tons work for 1/2"-3/4" materials; and 120-140+ tons punch through 1" plate. Piranha's tonnage calculator tool helps determine exact requirements. The SEP-120 delivers 120 tons for 1.5" diameter holes through 1" plate, while dual-operator ironworkers up to 225 tons handle the heaviest structural work. Consult with Piranha engineers to match machine capacity to your specific production workload.

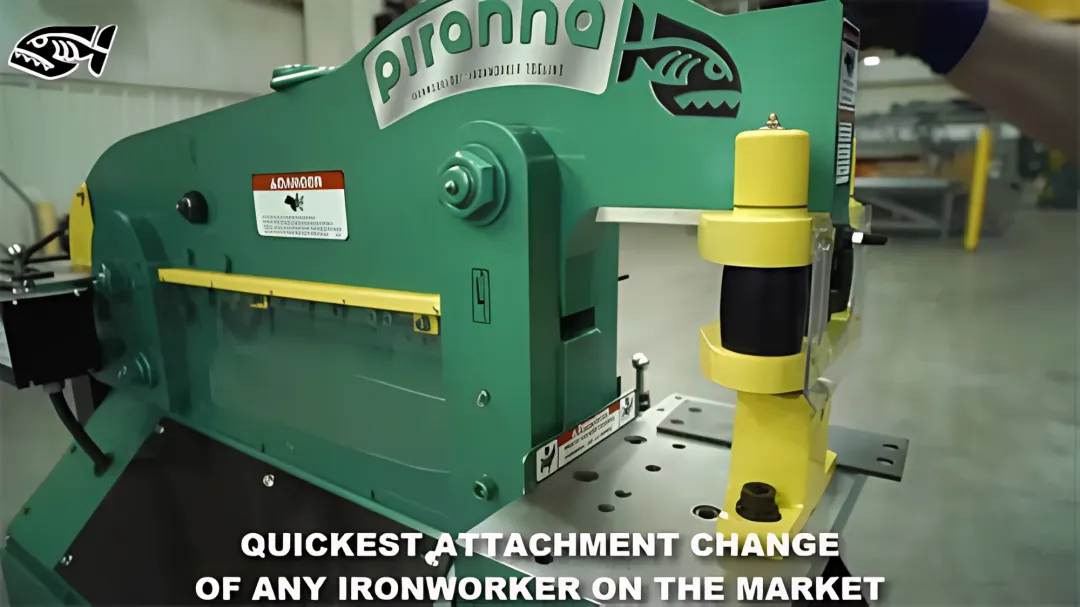

Yes, Piranha's hydraulic punches and ironworkers are designed for versatility across materials and thicknesses using quick-change tooling. The dovetail tooling system on most models allows rapid punch and die changeovers without machine disassembly. Standard features include adjustable urethane hold-downs and strippers that accommodate varying material gauges. With proper tooling selection, a single machine handles mild steel, stainless steel, aluminum, and structural shapes from thin gauge up to maximum rated capacity—reducing setup time and maximizing your equipment investment.

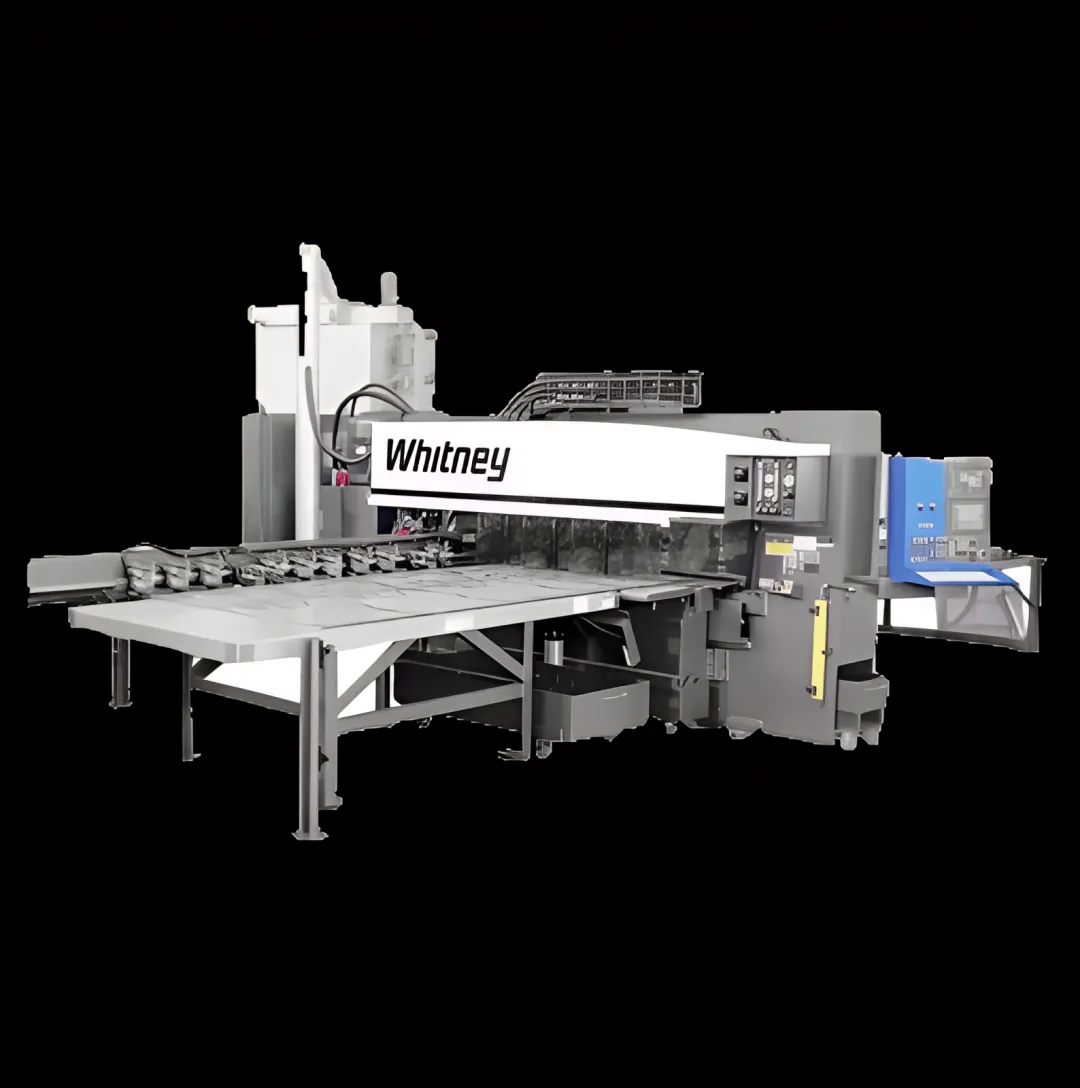

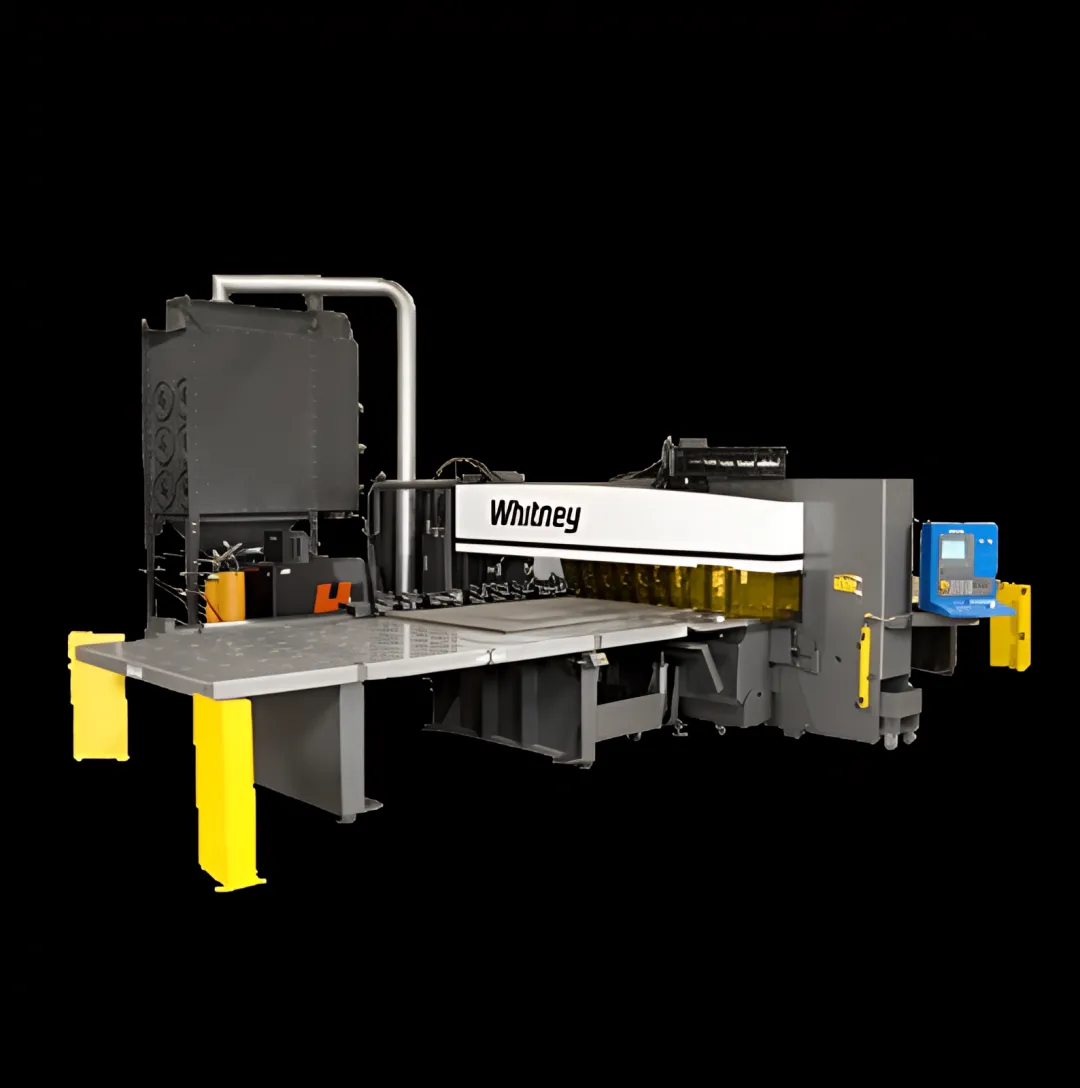

Piranha offers extensive attachments including 4-way bending dies, pipe and tube notchers, channel processing tools for punching leg or web sections, oversize hole punching attachments (up to 50 tons), flat bar and angle processing gauging tables, and coper notchers with low rake angles. The SEP-120 comes complete with punching attachment, stripper, and 5 punch/die sets. Combination punch/plasma machines add thermal cutting capability. Automation systems integrate with CNC fiber lasers for material loading and unloading, enhancing productivity in high-volume operations.

Piranha provides comprehensive maintenance resources including service manuals for all models, maintenance charts, filter lists, and video tutorials covering routine procedures. Key maintenance includes regular hydraulic oil checks (ISO Grade 32, up to 30 gallons depending on model), inspection and replacement of urethane hold-downs and strippers, verification of punch and die alignment, and periodic filter changes per the maintenance schedule. Preventive maintenance programs are available through Piranha's U.S.-based service network with same-day parts shipping from Belvidere, IL, minimizing downtime and extending equipment life.
