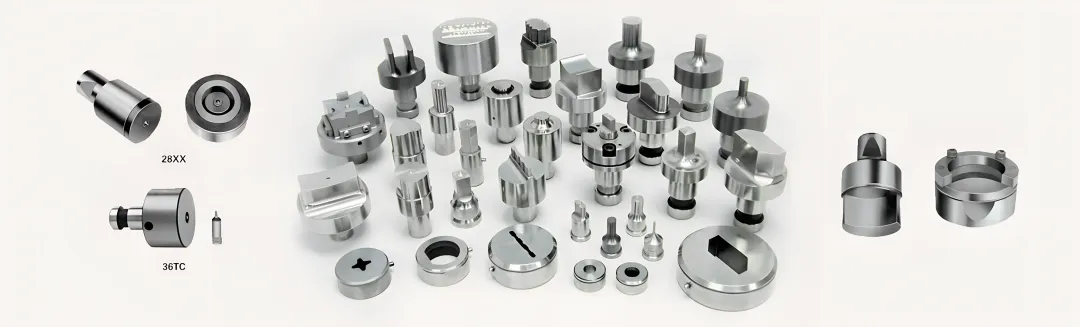

Ironworker Punches and Dies Cross Reference Chart

For a 9/16" (0.5625") punch in mild steel, the die opening should typically be 0.581" to 0.594" depending on material thickness and type. This provides the standard 5-10% clearance per side. For 1/4" mild steel, use approximately 0.588" die opening. Thicker materials may require slightly larger clearances. Piranha's cross-reference chart lists exact die dimensions for all standard punch sizes across GFM, Cleveland, and Mubea tooling systems to ensure proper fit and performance.

Punch working length is determined by adding the material thickness, die thickness, and stripper plate engagement distance. Minimum working length ensures the punch extends through the material and die completely while maintaining proper retention in the punch holder. For ironworker applications, verify your specific machine's ram stroke and tooling holder depth. Piranha tooling is manufactured with industry-standard working lengths compatible with major ironworker brands. Contact technical support at 800-338-5471 for machine-specific working length calculations and tooling recommendations.

D-style tooling (also called D-station or thick turret tooling) typically ranges from 0.125" to 3.500" in diameter, with the most common sizes being 0.500" to 2.000". D tooling is characterized by larger shank diameters compared to standard tooling, providing greater strength for heavy-duty punching operations. Piranha's cross-reference chart includes complete D-style tooling dimensions across all compatible manufacturer systems including GFM, Cleveland Punch & Die, and Mubea, ensuring you select the correct punch and die combination for your application.

Yes, Piranha ironworker punches and dies are cross-compatible with major manufacturers including GFM, Cleveland Punch & Die, Cleveland Steel Tool, and Mubea machines. Our comprehensive cross-reference chart identifies equivalent tooling styles across brands, enabling seamless replacement and interchangeability. Whether you're running a single-brand shop or mixed equipment, Piranha tooling maintains consistent performance. Our technical team can verify specific compatibility for your ironworker model—call 800-338-5471 for detailed cross-reference guidance.

Ironworker tooling is identified by style codes (such as BF, EA, RP, TP, etc.) typically stamped on the punch or die body. If markings are worn, measure the shank diameter, overall length, and mounting configuration, then reference Piranha's cross-reference chart to identify the equivalent style. Our chart covers over 70 tooling styles with dimensional specifications. For assistance identifying unmarked or legacy tooling, contact Piranha technical support at 800-338-5471 with measurements and photos for expert identification.

Tool life depends on material type and thickness, punch-to-die clearance, alignment, lubrication, and proper sharpening intervals. Punching abrasive materials like stainless steel or high-strength alloys accelerates wear compared to mild steel. Excessive clearance causes burrs and premature dulling, while insufficient clearance increases breakage risk. Regular inspection, proper lubrication, and timely resharpening extend tool life significantly. Piranha tooling is manufactured from premium tool steels for maximum durability. Consult our technical team for application-specific maintenance recommendations to optimize your tooling investment.
