Ironworker Punch & Die Sets

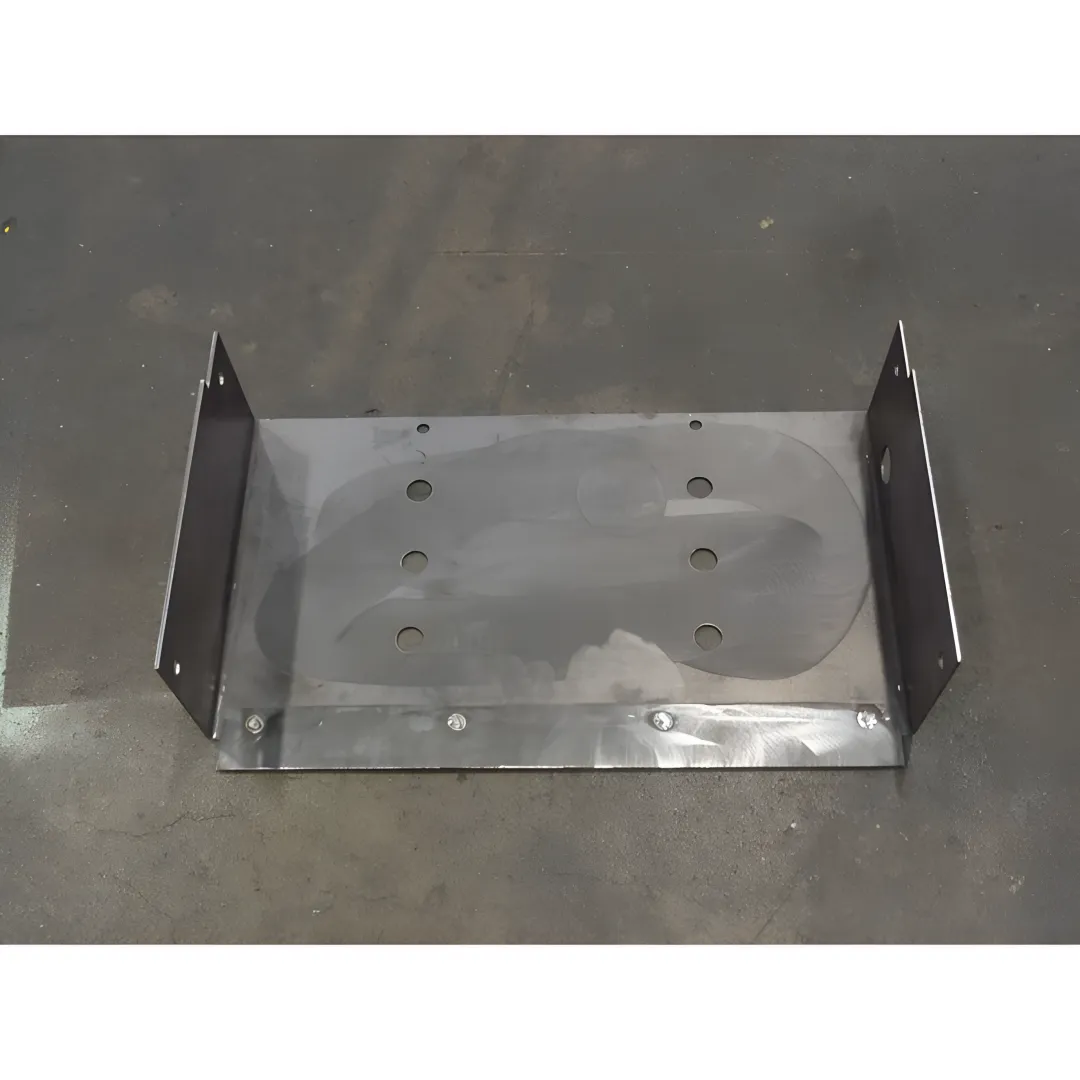

Punch sets are categorized by application and configuration: standard round punches for bolt holes and fasteners; obround or slotted punches for cable entries and adjustable connections; square and rectangular punches for structural openings; and specialty shapes like keyhole or D-profile punches. Sets are also classified by shank type (thick turret, thin turret, or Strippit-style) to match specific ironworker models. Material-specific sets include those for stainless steel, aluminum, or mild steel. Piranha offers both individual replacement punches and complete multi-diameter sets with matching dies and strippers.

Required tonnage depends on material thickness, hole diameter, and material type. As a general rule, punching mild steel requires approximately 80 tons per inch of hole circumference through 1-inch plate. For example, a 1-inch diameter hole through 1/2-inch mild steel needs roughly 60-70 tons. Stainless steel and high-strength alloys require 20-30% more capacity. Piranha's SEP-120 delivers 120 tons, handling up to 1.5-inch diameter holes through 1-inch mild steel plate. Always consult capacity charts and consider material hardness before selecting tooling to avoid premature die wear or punch breakage.

Proper maintenance extends punch and die life significantly. Keep punch and die surfaces clean and lightly oiled to prevent rust and galling. Inspect cutting edges regularly for chips, cracks, or excessive wear; sharpen or replace when edge radius exceeds 0.005 inches. Ensure proper punch-to-die clearance (typically 5-10% of material thickness per side) and verify stripper spring function to prevent material sticking. Lubricate the punch shank and ram bore, and never force oversized material or exceed rated capacity. Store sets in protective cases when not in use, and rotate high-use punches to distribute wear evenly across your tooling inventory.

Yes, within the capacity limits of your ironworker and the structural integrity of the punch. A single punch and die set can handle a range of material thicknesses as long as total required tonnage stays below machine capacity and punch shear strength. However, optimal die clearance varies with material thickness—thinner material benefits from tighter clearance (3-5% per side), while thicker plate requires more clearance (8-10% per side) for clean slug ejection. For production environments punching widely varying thicknesses, consider dedicated die sets optimized for your most common gauges to maximize hole quality and tool life.

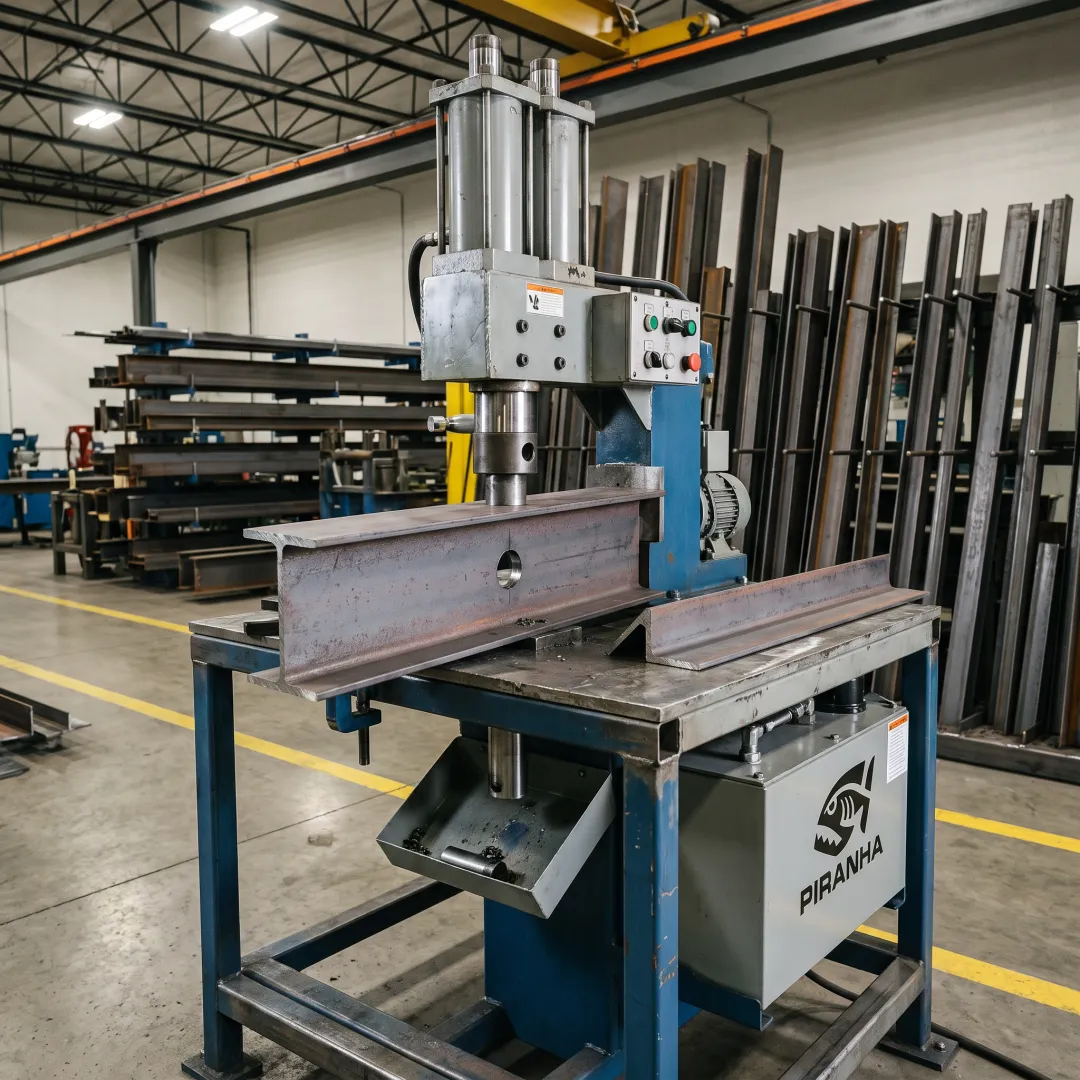

The punch is the upper male component that applies force to shear the material, while the die is the lower female component with a matching hole that supports the workpiece and allows the slug to drop through. The punch must be slightly smaller than the die opening—this critical clearance (typically 5-10% of material thickness per side) determines cut quality. Insufficient clearance causes excessive wear and breakthrough tearing; excessive clearance produces rough edges and burrs. Quality punch and die sets from Piranha are precision-matched and hardened to maintain consistent clearance through thousands of cycles, ensuring repeatable hole quality for spec-driven fabrication.

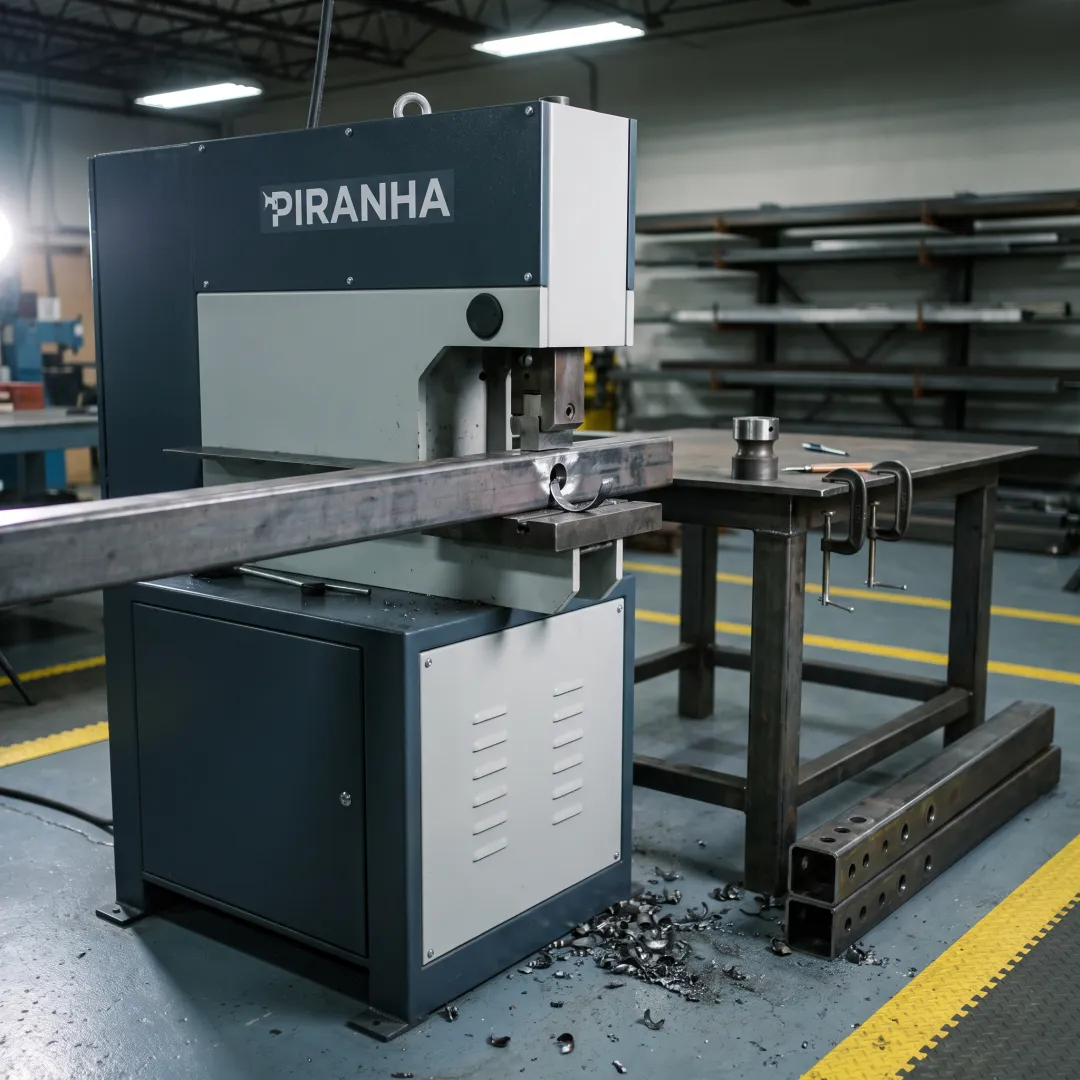

Piranha punch and die sets are designed primarily for Piranha ironworker machines, including the SEP-120 single-end hydraulic punch and dual-operator models. Compatibility with other brands depends on shank style, ram bore diameter, stripper design, and die table configuration. Many aftermarket and OEM punch sets use industry-standard shank profiles (thick turret, thin turret, Strippit-style), allowing cross-compatibility in some cases. However, for optimal performance, safety, and warranty coverage, we recommend using Piranha-engineered tooling matched to your specific machine model. Contact our technical support team with your ironworker model number for confirmed compatibility and tooling recommendations.
