Plasma Torch Height Controllers

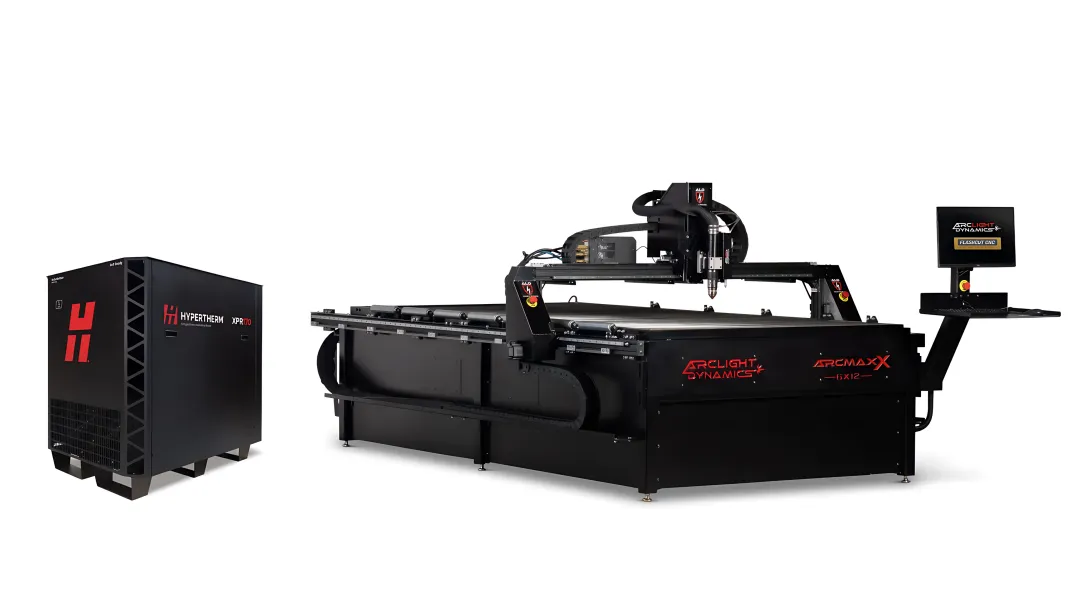

A 30-amp plasma cutter typically cuts mild steel up to 3/8 inch cleanly, with severance capacity up to 1/2 inch depending on the unit. However, Arc Max tables are configured with Hypertherm Powermax SYNC systems ranging from 45A to 125A, and XPR systems up to 300A for industrial applications. The Arc Max X with Powermax SYNC can pierce 2-inch mild steel and sever up to 3 inches, while Elite and Ultra models handle plate up to 2-3 inches in daily production environments.

Plasma cutting produces intense UV radiation and bright arc light similar to welding, requiring the same level of eye protection. Always use a welding helmet with appropriate shade rating (typically shade 8-12 for plasma) and ensure bystanders are protected with screens or curtains. Arc Max CNC plasma tables include breakaway torch mounting and FlashCut CNC control that allows operators to program cuts from a safe distance, reducing direct arc exposure during automated cutting operations.

Microstep programmable torch height control provides smoother, more precise torch positioning than traditional stepper systems. It enables tighter tolerances, reduces mechanical vibration, and allows for faster traverse speeds without sacrificing cut quality. Arc Max tables use this technology to hold consistent standoff automatically, producing weld-ready edges and bolt-ready holes with FlashCut Smart 360 hole cutting—eliminating secondary drilling operations and improving production throughput.

Ohmic sensing detects electrical contact between the torch and workpiece to establish precise initial height reference, even on warped or uneven material. This is more accurate than mechanical touch-off, especially on thin gauge or painted materials. Arc Max Elite and Ultra models include both ohmic and mechanical touch-off capabilities, ensuring reliable height detection across diverse material conditions and producing consistent standoff for tight hole and edge tolerances required in NEMA and UL-compliant fabrication.

Routine maintenance includes inspecting torch mounting hardware for wear, verifying electrical connections remain secure, and cleaning arc voltage sensing leads. The breakaway torch mounting on Arc Max tables protects the system from crash damage and requires periodic inspection of spring tension and alignment. With lifetime U.S. technical support, remote diagnostics via FlashCut CNC, and same-day parts shipping from Belvidere, IL, Piranha ensures minimal downtime and long-term reliability for your torch height control system.

Yes, advanced torch height control systems automatically adjust cutting parameters based on programmed material thickness and cutting amperage. Arc Max tables with FlashCut CNC or ARC CNC control integrate THC with the cutting program, adjusting initial pierce height, cutting height, and traverse speed according to material specifications. This automation ensures optimal cut quality across mixed-thickness production runs without manual torch adjustment, critical for high-volume fabrication shops serving the trucking, trailer, and structural steel industries.
